Brand Name : SX-FENCE
Model Number : 5mm
Certification : SGS,CE,BV
Place of Origin : Anping, Hebei, China
MOQ : 50 set
Price : $36.5/set
Payment Terms : T/T, L/C, Western Union, Cash; etc.
Supply Ability : 10000
Delivery Time : 15-25 days after getting the payment
Packaging Details : metal pallet and carton box
Product Name : BRC Mesh Fence
Frame Material : Metal
Pressure Treated Wood Type : Nature
Advantage : High stability
Feature : Ornamental
Horizontal wire : 150mm
Vertical wire : 50mm
Surface treatment : Hot Dipped Galvanized
Wire Diameter : 5.0mm
Material : Low Carbon Steel Wire
BRC Mesh Fence Information
The top and the bottom are rolled into a triangle. BRC Welded Fence, also named triangle bending fence, roll top fence, is a beautiful, elegance and currently the most popular welded fencing system. Rolled top and bottom means no sharp or raw edges. It’s an open mesh system that allows excellent visibility making it widely popular among communities.
BRC Mesh Fence Specification
| Wire Diameter | Mesh Size | Length | Height | Round Post Size | Common Colour |
|
4.0mm 5.0mm 6.0mm |
50x100mm 50*150mm 50x200mm 75*200mm 100x200mm 100x300mm |
2000mm 2200mm 2500mm 3000mm | 1030mm |
48x1.5/2.0mm 60x1.5/2.0mm
| Green RAL6005 Black RAL9005 White RAL9010 Grey RAL7030 Red RAL3020 Yellow RAL1023 Blue RAL5017 |
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Folds NOS. | Height |
| 50x150mm or 55x150mm | 4.00mm 4.50mm 5.00mm 6.00mm 7.00mm | Hot dipped Galvanized or | 3.00 m | 2 | 900mm |
| 2 | 1200mm | ||||
| 2 | 1500mm | ||||
| 2 | 1800mm |
| Size | Wall Thickness | Surface Treatment | Holes | Height |
| 48mm or 60mm | 1.50mm 2.00mm 2.50mm | Galvanized and Electrostatic polyester coated or Hot dipped galvanized | With several holes drilled on itself | According to the panel height |
BRC Mesh Fence Characteristics
Suitable where safety is a consideration
Aesthetic appearance
High rigidity
Excellent through vision
Wide range of colour options
Available as a complete system

BRC Mesh Fence Application
BRC fence usually be used in parking area, park or some other area in the city. Some engineer designed the BRC fence used to be as temporary protection such as in a building floor during construction. Skyhall provide all kinds of BRC fence with different specs.

Fence Panel Process:
Material( Iron wire)---Cutting and straighting---Welding-- elector galvanized--Water washing--- Parkerising--- Water washing--- High temperature-- Powder coated--- High temperature solidify---Packing---Shippingg
Fence Post Process:
Material(Hot-dipped Galvanized tube)---Cutting--- Water washing--- Parkerising--- Water washing--- High Temperature-- Powder painted---High temperature Solidify---Packing---Shipping
BRC Mesh Fence Packing

Fence Panels:
The panels of wire mesh fence: wrapped by wooden pallet with plastic film, to keep the panels clean;
The Clamps of wire mesh fence: in small carton box , to avoid damage;
The fence post of wire mesh fence: wrapped with plastic film and in bulk, or on your request.
BRC Mesh Fence Advantage
•Easy Installation
•Cost effective
•Nice looking
•Different options on color according to the using environment
•Strong anti rust and anti corrosion ability
•Different options of install clips such as metal or plastic
•Different options of post
Fence Panel Process:
Material( Iron wire)---Cutting and straighting---Welding-- elector galvanized--Water washing--- Parkerising--- Water washing--- High temperature-- Powder coated--- High temperature solidify---Packing---Shippingg
Fence Post Process:
Material(Hot-dipped Galvanized tube)---Cutting--- Water washing--- Parkerising--- Water washing--- High Temperature-- Powder painted---High temperature Solidify---Packing---Shipping
BRC Mesh Fence Packing
Fence Panels:
The panels of wire mesh fence: wrapped by wooden pallet with plastic film, to keep the panels clean;
The Clamps of wire mesh fence: in small carton box , to avoid damage;
The fence post of wire mesh fence: wrapped with plastic film and in bulk, or on your request.

Company Introduction
Shengxin is a China-based company. We have nearly 30 years of fence producing experience, and nearly 15 years of exporting experience. Our main products are Single Wire Mesh Fence, Double Wire Mesh Fence, Anti Climb Fence, Chain Link Fence, and also our new product: metal dog cage.

Company Advantage
1> We have customers from more than 100 countries, like America, Canada, Mexico, Brazil, Peru, Germany, Russia, France, Poland, Australia, New Zealand, India, Algeria, South Africa, Zimbabwe, PNG, etc.
2> With the location in Anping County, China, it was established in 1992, and then in the year of 1997, Anping County Shengxin Metal Products Co.,Ltd was registered, which has become a well-known established corperation in wire mesh business.
3> We have 11 sets if welding machines, 3 PVC coating production lines, 1 advanced powder coating production line, 2 powder making production lines, and 3 folds marking machines. The production capacity can reach 8,000 square meters per day.
4> With the authentication of ISO 9001, CE, BV, we win our market and get customers' confidednce by abiding conctract, sticking to prestige and strict quality control. We have been enjoying good reputation in both domestic and overseas market
Service
1> Free Sample can be offered
2> Free Drawings can be offered
3> OEM and ODM order are accepted
4> Good Quality + Factory Price + Quick Response + Reliable Service
5> Provide visualization services to view production progress anytime and anywhere
6> Rich exporting market experience offered to enlarge your market
7> Warranty: Best quality products to be manufactured. if the quality is not meet your demand, we are sure to give you full compensation in any way, money back or free reorder.
|
|

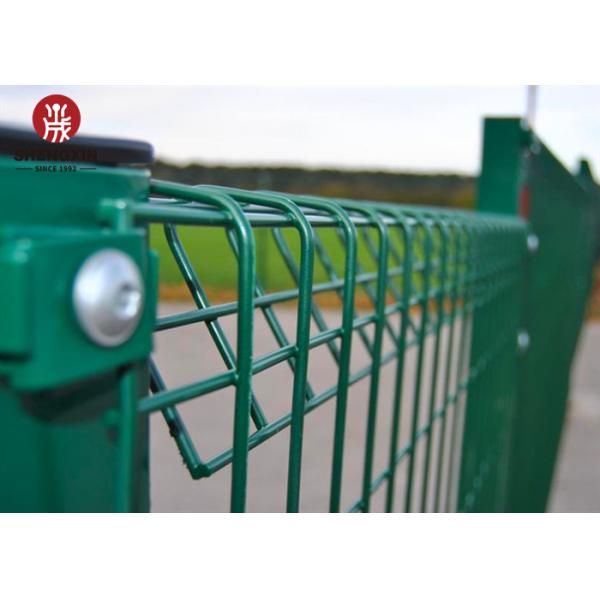

Double Loop BRC Mesh Fence Images |
